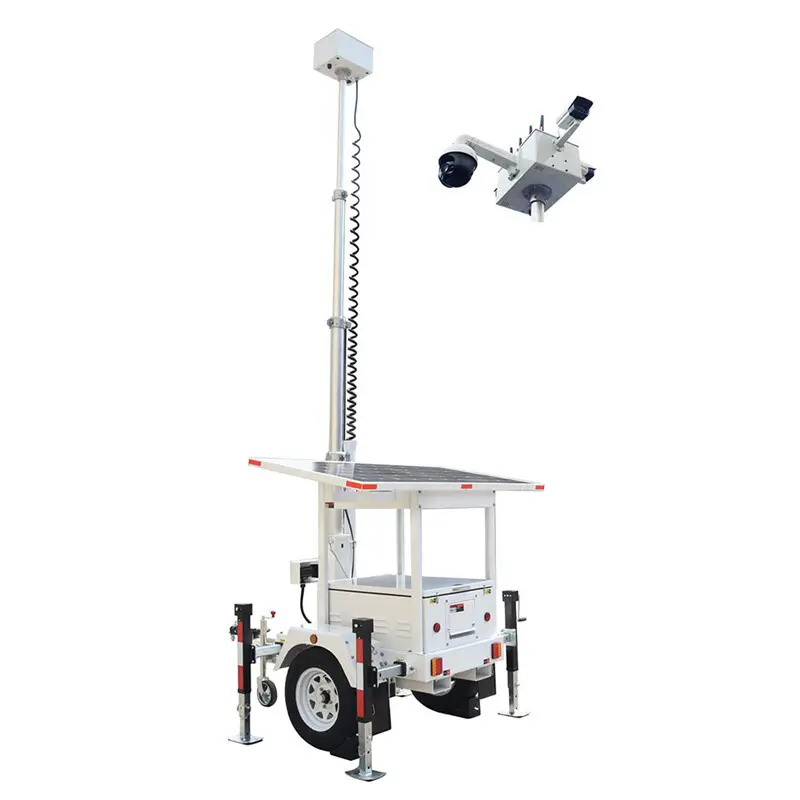

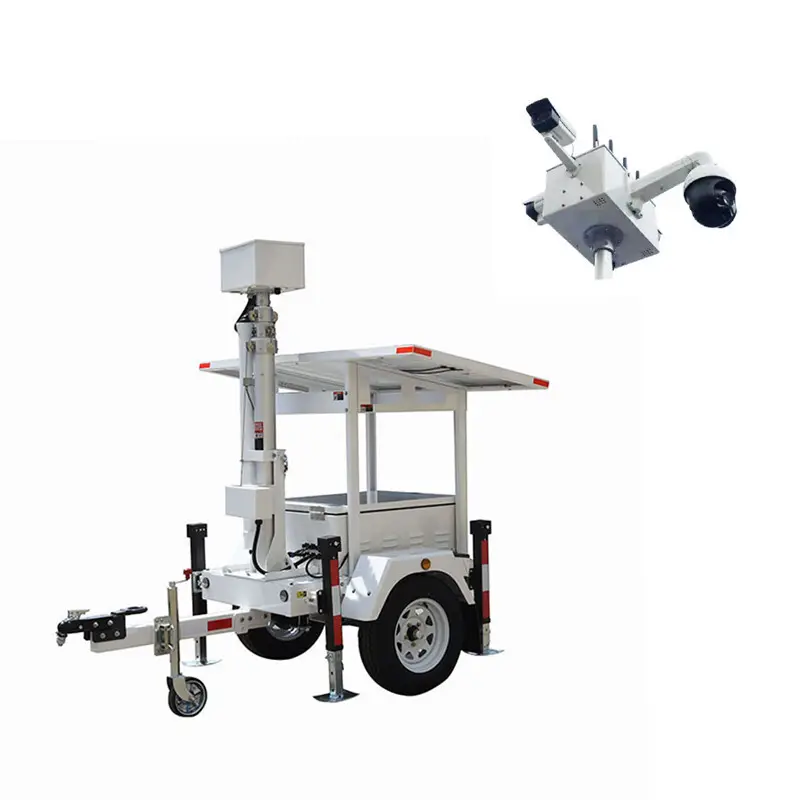

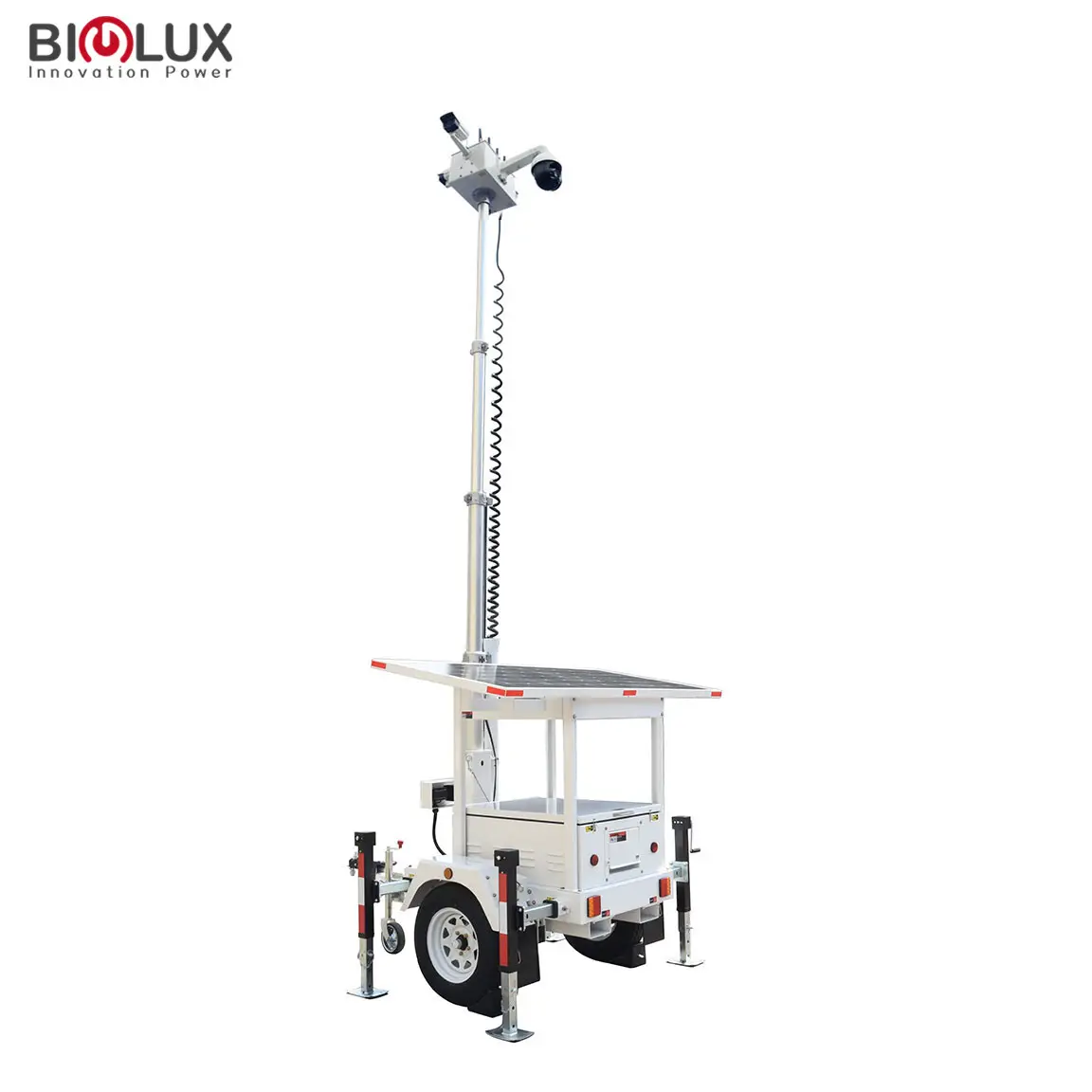

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX

Solar Panel:
1*460w
Battery:
2 × 200Ah,DC12V,4800W·h
Spring Cable:
2 × Cat6 + 2 × Supply
Running Time:
4 days 40w
Model:
HS4601G-6M
Inquiry

Product details of the portable surveillance camera tower


Product Description

A strong R&D team provides BIGLUX portable surveillance camera tower with technical improvements. Its quality is highly valued in our factory. Due to these features, it is extensively popular in the industry.

Biglux solar security trailer for hotel

Biglux solar security trailer is ideal for hotel to property for outside car from stealing. There are a lot of crimes outside of hotel. Our solar security trailer with one solar panel, it is very small, and it is easy to place to anywhere. Also we can add speaker for monitor. It can be connected to the monitoring of the video recorder, there is an alarm output, such as setting a good area, a burglar broke in,it will sound the horn.It also can support the camera intercom shouting function, as long as the camera has an audio output function, the customer can shout at the scene of the device from afar.

CONFIGURATIONS:

Solar Panel: 1*460w solar panel

GEL Battery: 2 × 200Ah,DC12V,4800W·h

with CCTV mounting box and  PoE Switch

Spring Cable: 2 × Cat6 + 2 × Supply

Controller: 40A MPPT,95% Efficiency

Mast: Aluminum Alloy,Round Telescopic type,6 m,4 Sections,

          Manual Winch Lifting,40kg Load,117kph Windproof

Trailer: US/EU/AU Standard,Ball Hitch, Single Axle,Manual Outrigger

Charging Time: 8.8 hours

Running Time: 4 Days for 40W

System Voltage:  DC12V

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 9

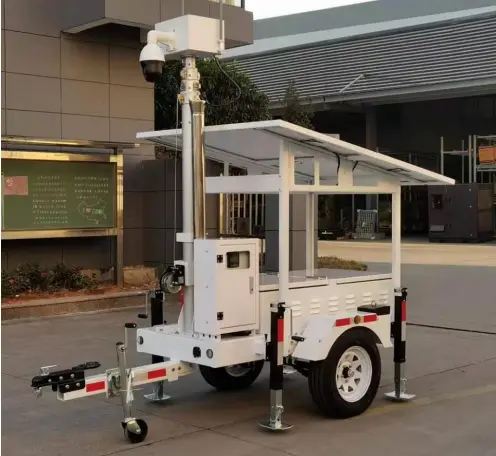

Trailer body details

You can see the trailer wheel and trailer body details. We have shutters for the trailer body, it is good for heat conditions.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 10

MPPT controller details

Customer can review MPPT controller inside.Also we have charger for the trailer.If there is no enough sunshine in customer's area, they can charge for the batteries through the charger as back up.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 11

We have 2 sizes for the CCTV mounting boxes. We will use it according to customer's requirements.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 12

The hitch and MPPT controller details. Our quality is very good. We used very good quality raw material for the trailer.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 13

You can see the details inside of the trailer.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 14

Biglux gel batteries are very stable, it can be used for 3-4 years without broken. And our batteries wires are screwed together.

4800W·h Portable Surveillance Camera Tower 2 × Cat6 + 2 × Supply BIGLUX 15

FAQ:

1. Can the solar trailer, cameras and batteries work under zero 30 degrees?

Biglux: Our trailer and cameras can work under zero 35 degrees to 50 degrees. But batteries can only work under zero 15 degrees.

If you have any further details about Biglux solar surveillance trailer, please feel free to get in touch with us. We will get back to you within 6 hours.
