BIGLUX Mobile CCTV Tower


Company Advantages

· The overall energy efficiency of BIGLUX mobile CCTV tower is totally optimized due to the adoption of computerized production, ensuring minimal impact on the environment.

· The product is notable for its safety. Adopting insulating materials, it is free of static electricity damage and current leakage.

· Thanks to the high market recognition, the product has a great market application.

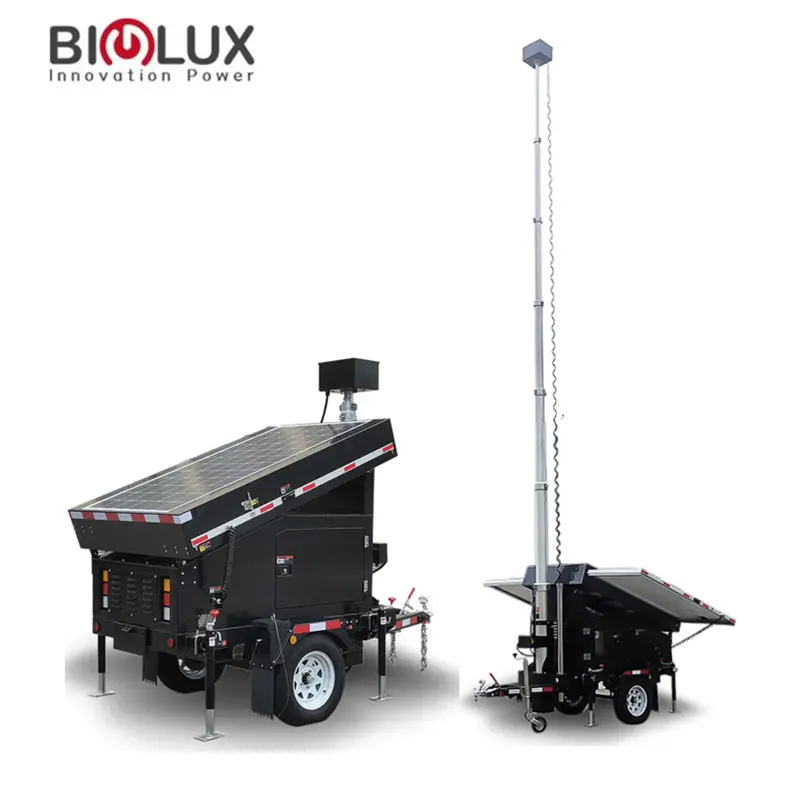

Off Grid Solar Surveillance Tower Trailer

The Biglux Off Grid Solar Surveillance Tower Trailer has all the features as normal smart CCTV systems do,  in addition to two special advantages:

1. Solar powered and self-sufficient. Because it powered by the energy generated by the solar panels and MPPT. Even can work in remote areas without other cables and plugs, or the places lacking electricity power.

2. Mobility, after completing the task of this place, change to the next place and perform a new task. As smart as a security guard, but without pay, meals and rest. Just give him the sun.

3. There is enough solar power and battery capacity matched for each trailer, even if it rains, it can be used for several days with one full charge. It make sure your cameras work 24/7/365.


Solar Panel: 3* 460W, Monocrystalline Silicon

Battery: 6*200Ah,DC12V, 14400W·h lead acid batteries

Spring Cable: 2pcs cat6 and 2pcs Power wires

Controller: 95% Efficiency smart MPPT controler

Mounting box: square type for cameras

Mast: aluminium alloy Telescopic type, 6 m, 4 Sections, manaul Winch Lifting, recommend load: 5-50kg

Trailer: US/EU/AU Standard, Ball Hitch, single Axles, 4pcs Manual Outriggers, safety chains

Charging Time: 8.8 hours with good sunshine

Running Time: 96 hours for 120W devices at 80% DOD

Mounting box:

The square mounting box at top of the mast is for cameras, you can install at least 4 cameras there, and if needed, speeker, and led lights can be installed too. You can put a POE switch inside the box.

With the mounting box, and spring cables, you can match the cameras locally or tell us your requirement of functions, we can install them for you. For example, 1ptz and 2 bullets.

Different colors are available:

The standard of the trailer is white color. But we can make different colors of powder coating for you, such as black, green, orange, blue, grey, red, yellow, etc. Please give us the color code, we will send you closet colors for your choice.

BIGLUX Mobile CCTV Tower 10

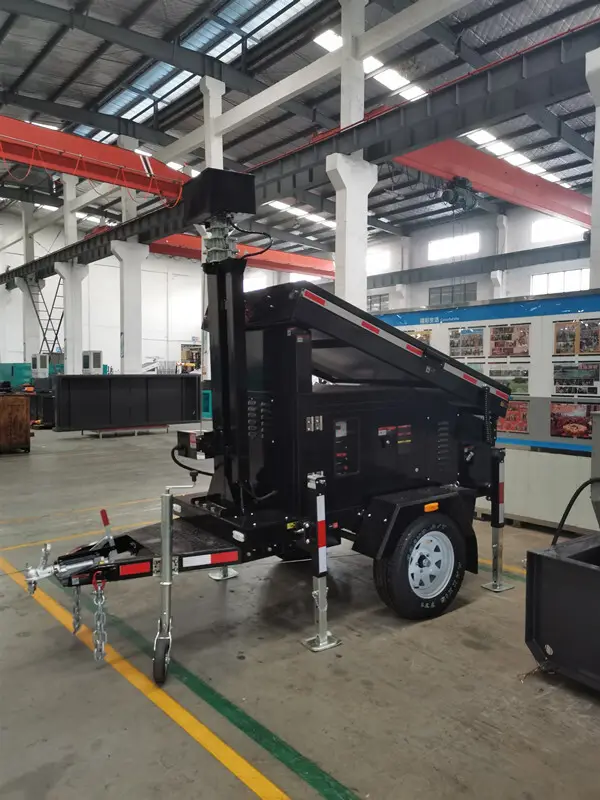

Doing assembly of the Off Grid Solar Surveillance Tower Trailer in the workshop. You can match led lights too.

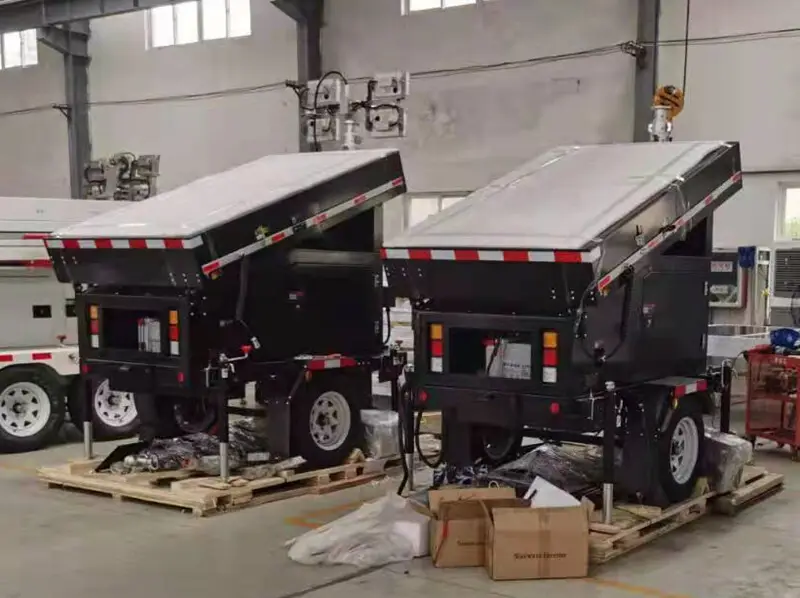

Packaging and container loading: 3 units for a 20 GP while 7 units for a 40HQ.

BIGLUX Mobile CCTV Tower 13

The telescopic mast can be changed into other height and lifting type

What does a surveillance camera do?

1. Prevention in advance can deter and warn criminals; follow up clues afterwards to provide evidence for case detection.

2. It can be used on mobile phones, different platforms and multiple devices at the same time.

3. It is required to be able to modify the resolution of the monitoring screen to meet the normal monitoring screen in different network environments.

4. It is required to be able to control the camera remotely, to be able to control the rotation of the camera, and to monitor the armed area from multiple angles. To achieve monitoring without dead ends.

If more details required for Off Grid Solar Surveillance Tower Trailer controler , welcome to contact Biglux.
